Pressure Gauges
Inline Pressure Relief Valves
Ready to Use SYSTEM

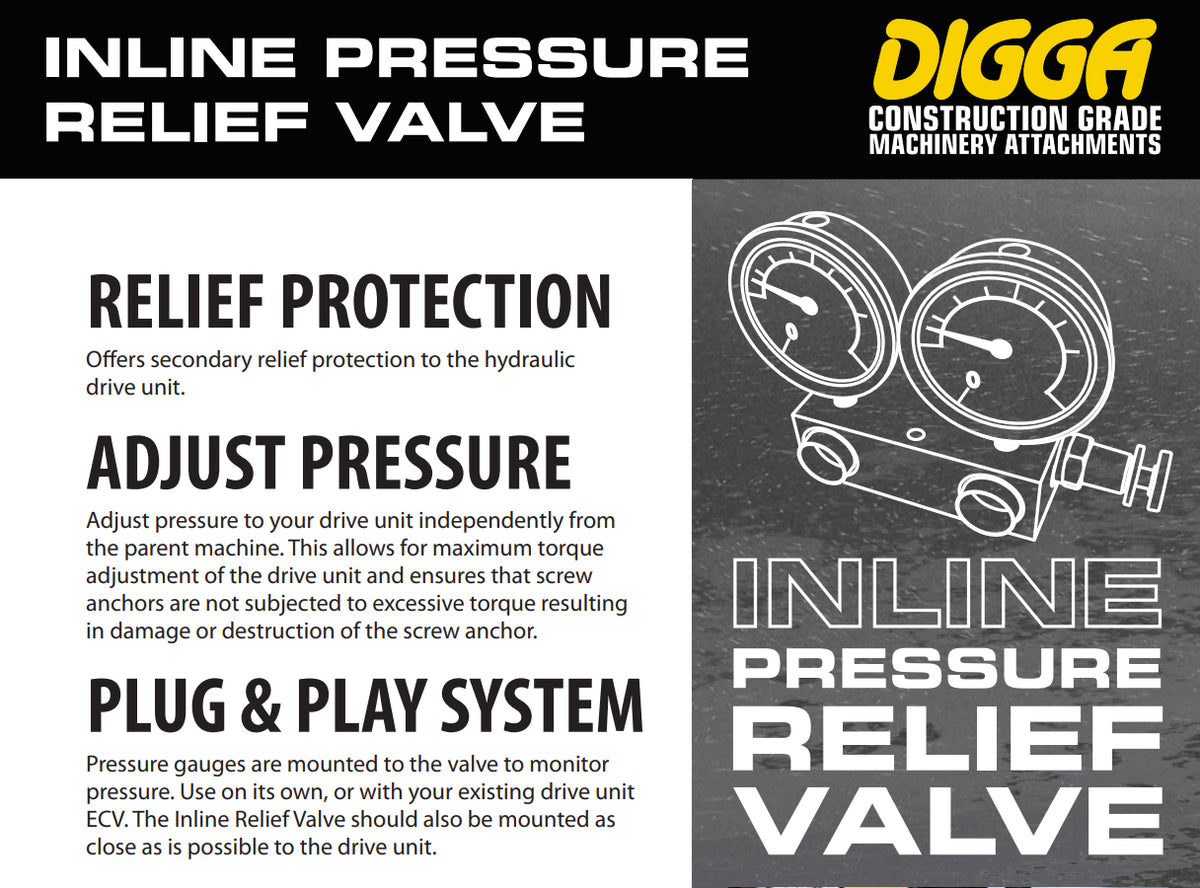

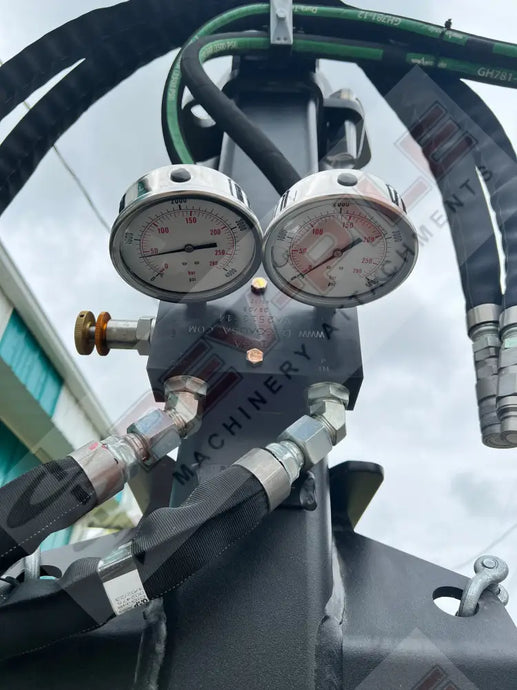

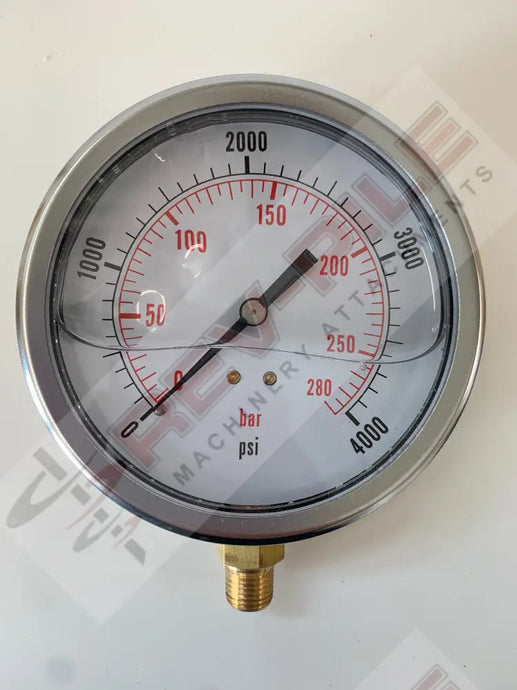

Pressure gauges are mounted to the valve to monitor pressure. Use on its own, or with your existing drive unit ECV. The Inline Relief Valve should also be mounted as close as is possible to the drive unit.
ADJUST PRESSURE
Adjust pressure to your drive unit independently from the parent machine. This allows for maximum torque adjustment of the drive unit and ensures that screw anchors are not subjected to excessive torque resulting in damage or destruction of the screw anchor.
RELIEF PROTECTION
Offers secondary relief protection to the hydraulic drive unit.
RELIEF PROTECTION FOR YOUR HYDRAULIC DRIVE UNIT
This piling accessory can be used on its own or with your existing drive head ECV (Energy Control Valve). It ensures that screw anchors are not subjected to excessive torque resulting in damage or destruction of the pile, as Beau explains.
Digga's Inline Pressure Relief Valve can be used in conjunction with either Digga Torque Logic or Differential Pressure Gauge to obtain accurate torque measurements while controlling the torque the drive unit is capable of transmitting through the pile.

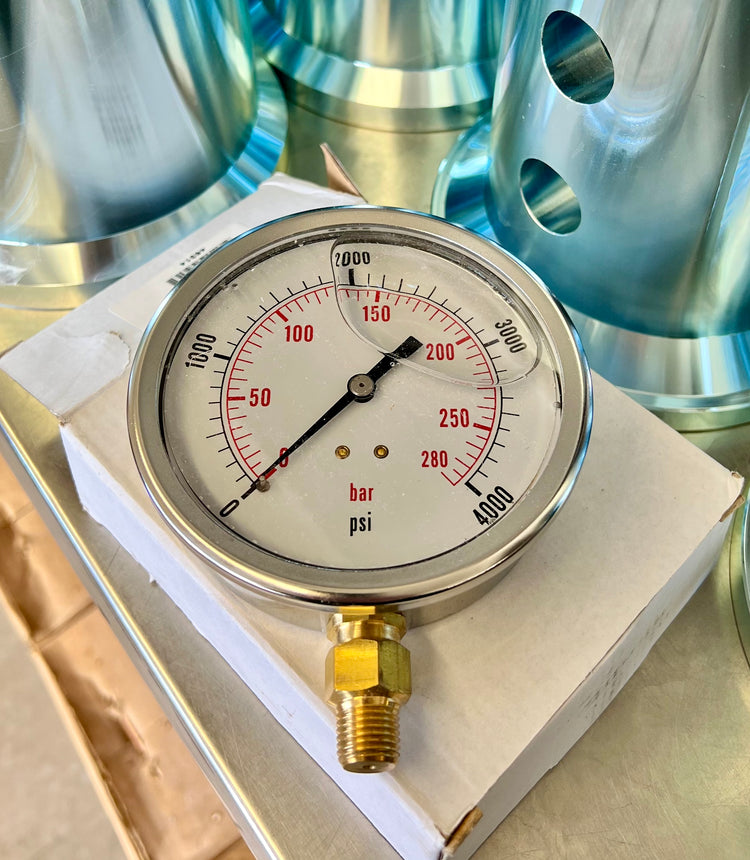

The Differential Pressure Gauge displays the hydraulic pressure being applied through the drive unit, which can then be reference back to a torque chart to give a theoretical torque measurement.
The Digga Torque Logic monitoring system will provide accurate torque readings of over 99% accuracy. This system also has the ability to data log the results of each pile installation.

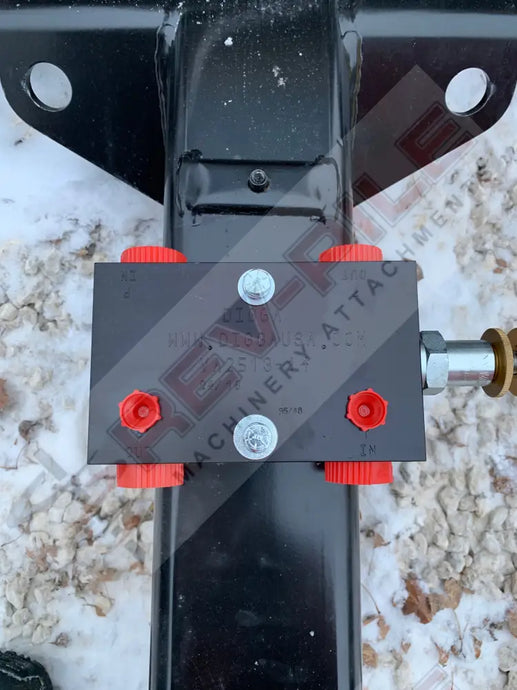

Inline Pressure Relief Valve
Ready to Use SYSTEM
Pressure gauges are mounted to the valve to monitor pressure. Use on its own, or with your existing drive unit ECV. The Inline Relief Valve should also be mounted as close as is possible to the drive unit.
ADJUST PRESSURE
Adjust pressure to your drive unit independently from the parent machine. This allows for maximum torque adjustment of the drive unit and ensures that screw anchors are not subjected to excessive torque resulting in damage or destruction of the screw anchor.
RELIEF PROTECTION
Pressure gauges are mounted to the valve to monitor pressure. Use on its own, or with your existing drive unit ECV. The Inline Relief Valve should also be mounted as close as is possible to the drive unit.
Easy to Install

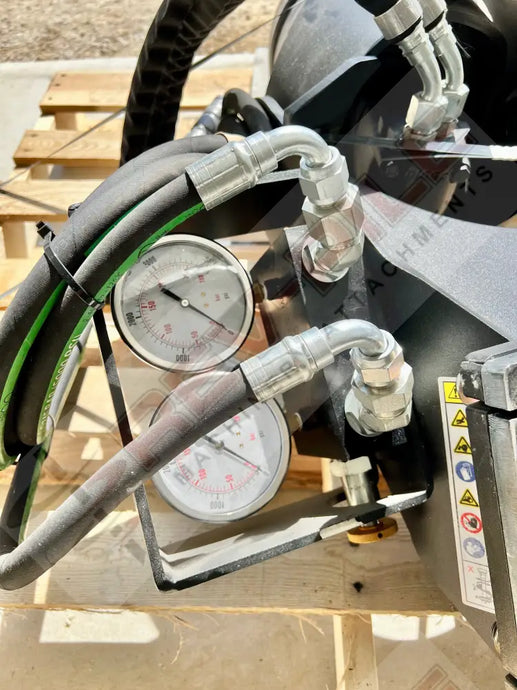

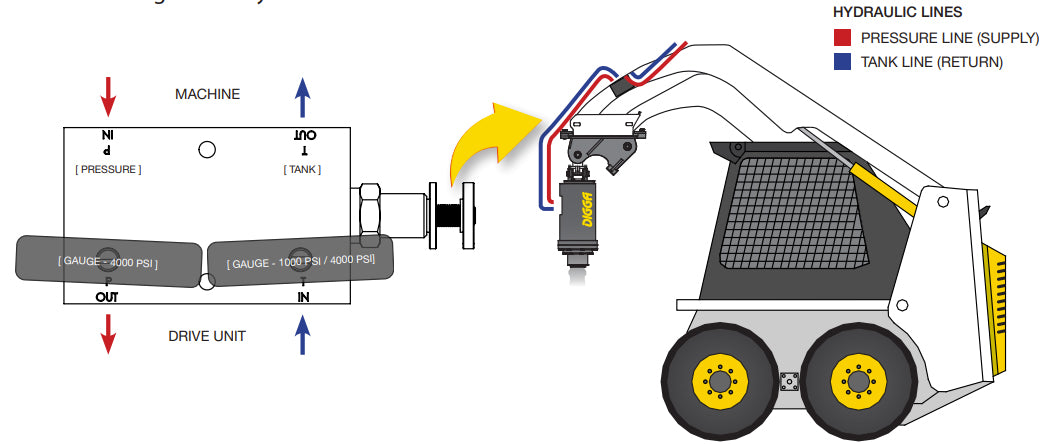

- Connect the pressure hose from the machine that will rotate the shaft of the drive unit clockwise to the port marked ‘[ P ] In’.
- Connect the machine return line hose to the port marked ‘[ T ] Out’.
- Connect the port marked ‘[ P ] Out’ to the pressure side of the motor.
- Connect the port marked ‘[ T ] In’ to the return side of the motor.

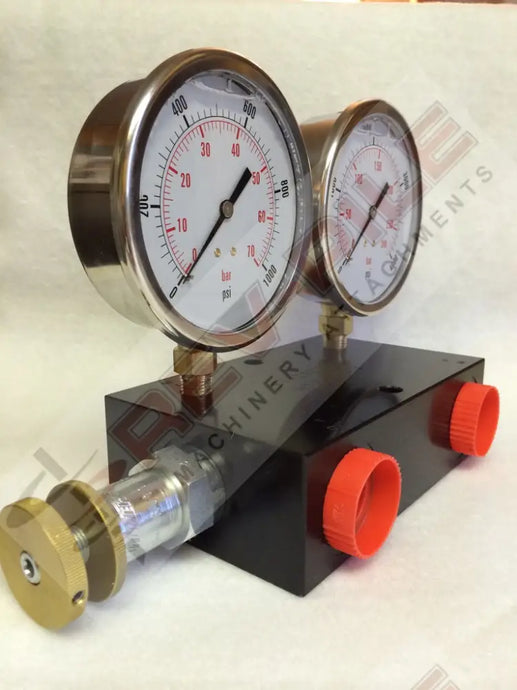

Attach the Gauges directly to the ¼” NPT Ports on the face of the valve.
Torque Monitoring Options

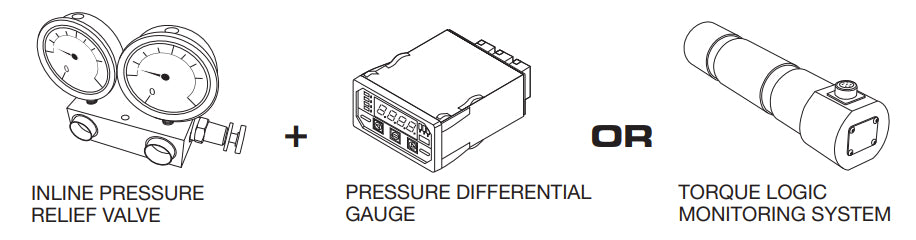

The Inline Pressure Relief Valve can be used in conjunction with either Digga Torque Logic or Differential Pressure Gauge to obtain accurate torque measurements while controlling the torque the drive unit is capable of transmitting through the pile.
The Differential Pressure Gauge displays the hydraulic pressure being applied through the drive unit,
which can then be reference back to a torque chart to give a theroretical torque measurement.
The Digga Torque Logic monitoring system will provide accurate torque readings of over 99% accuracy.
This system also has the ability to be able to data log the results of each pile installation
