SKU: TQHB-WF-BL-3-KIT

Torq-Hub 3" Hex

Vendor Rev-Pile™
Regular price $7,307.00 CAD
Sale price $7,307.00 CAD Regular price
Sale Sold out
Unit price
/per
This is a pre order item. We will ship it when it comes in stock.

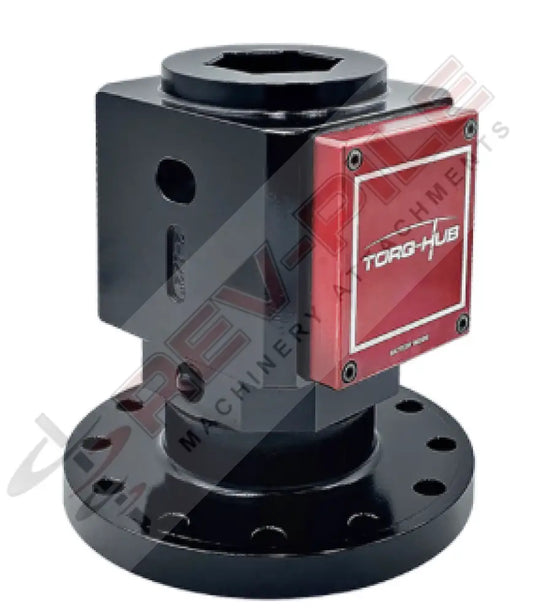

The Torq-Hub is a helical pile torque measurement tool that fits onto your anchor drive shaft, providing a lightweight and economical option for torque measurement.

Concept Measurement Inc’s Torq-Hub provides reliable and exact torque force measurements in either ft/lb or N-m, as well as pile/anchor inclination. CMI’s equipment offers the choice of long-distance wireless RF signals and shorter, more economical WiFi signals. Data through a wireless RF signal is sent to the handheld or machine-mounted display/data logger. WiFi signal options allow you to display data on our smartphone/tablet app (available on iOS and Android)

TORQ-HUB FEATURES

  • Options for all sizes and shapes of output shafts are available
  • Inclinometer included displaying pile insertion angle
  • Wireless RF signal from Torq-Hub to handheld or machine mounted display/data logger or through WiFi directly to your smartphone or tablet with our free app (iOS or Android).



TORQ-HUB FEATURES

Options for all sizes and shapes of output shafts are available

Inclinometer included displaying pile insertion angle

Wireless RF signal from Torq-Hub to handheld or machine mounted display/data logger or through WiFi directly to your smartphone or tablet with our free app (iOS or Android).

  • Flange Bolts = 12ea 5/8" @ 7-5/8" PCD
  • Size = 3" Hex
  • Torque Rating (Max) = 20,000 ft-lb (27,116 Nm)
  • Weight = 67 lbs - 31 kg
Features

TORQ-HUB FEATURES

Options for all sizes and shapes of output shafts are available

Inclinometer included displaying pile insertion angle

Wireless RF signal from Torq-Hub to handheld or machine mounted display/data logger or through WiFi directly to your smartphone or tablet with our free app (iOS or Android).

Product Specifications
  • Flange Bolts = 12ea 5/8" @ 7-5/8" PCD
  • Size = 3" Hex
  • Torque Rating (Max) = 20,000 ft-lb (27,116 Nm)
  • Weight = 67 lbs - 31 kg
Optional Extras

Product Inquiry

E-mail us anytime to discuss your equipment needs. We can quickly get you more information and pricing.

Product Inquiry
