Torq-Hub 2-1/2" Hex

Name: Torq-Hub 2-1/2" Hex
Brand: Rev-Pile™
SKU: TQHB-WF-BL-2.5-KIT

Rev-Pile™

$8,199.00 CAD

Sale Sold out

/

Estimated lead time: 15–20 business days

Not 100% sure this is the right setup?

Send us your machine model, hydraulic flow/pressure and application. We’ll help verify compatibility before you order.

Verify My Setup Request a Quote

Torque monitoring resources: Direct vs Pressure-Derived Torque Complete System Guide Pile Adaptors & Drive Tools Pressure Gauges

Quantity must be 1 or more

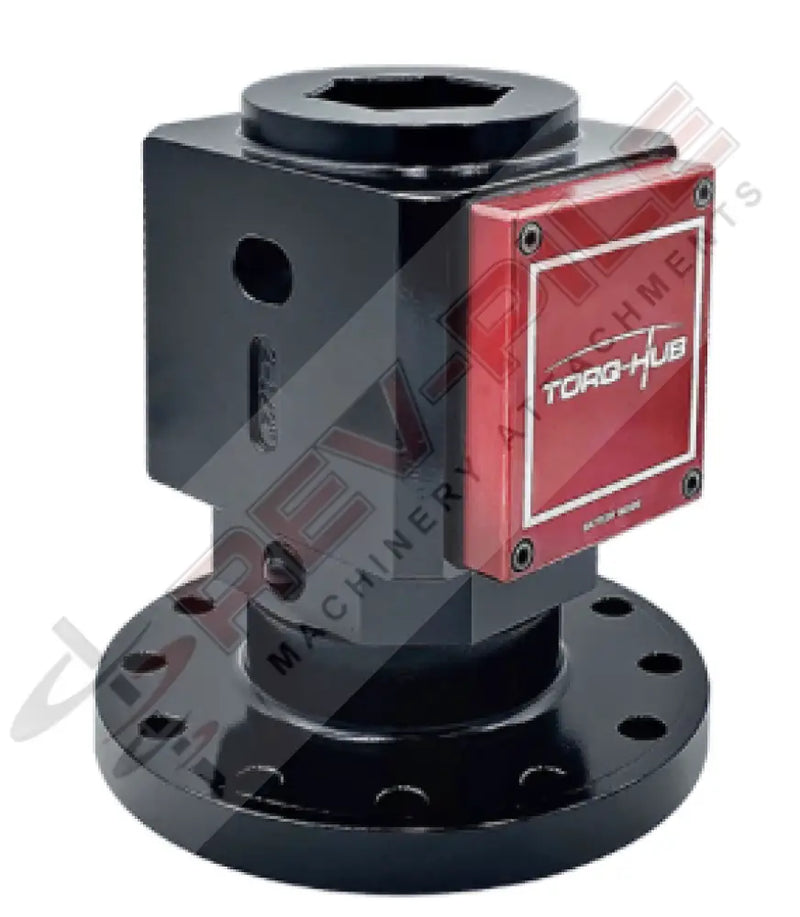

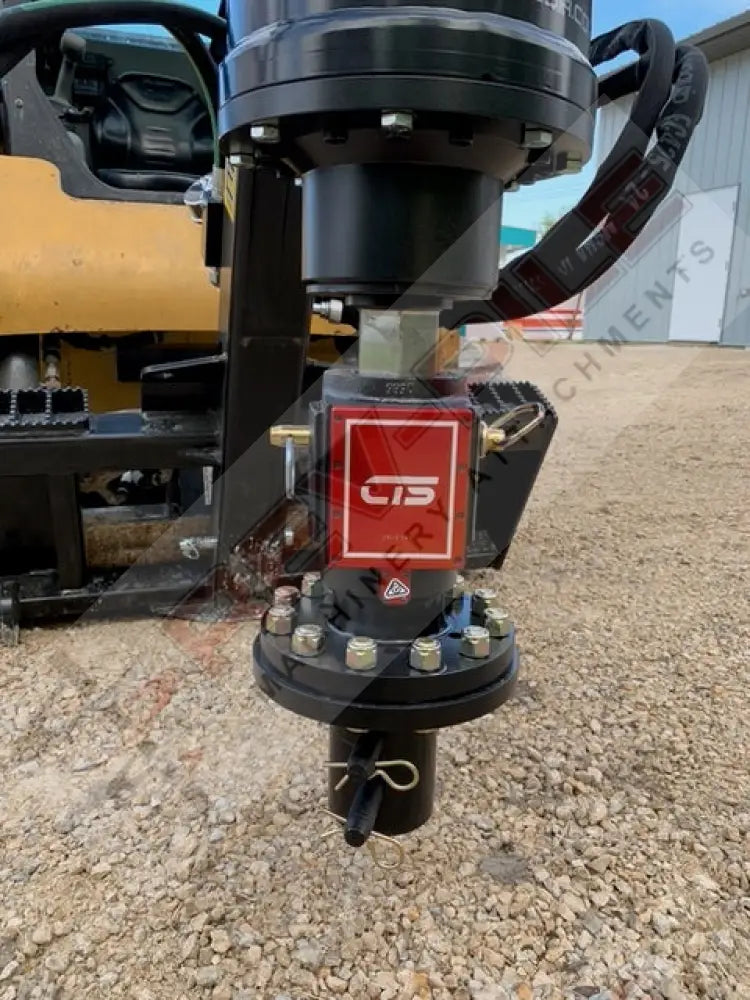

Torq-Hub direct torque monitor for 2-1/2" hex screw-pile / helical-pile drive interfaces. The Torq-Hub installs at the drive interface to measure installation torque and pile inclination without relying on hydraulic-pressure estimates alone.

Interface: 2-1/2" Hex
Torque display: ft-lb or N-m
Inclination: integrated inclinometer

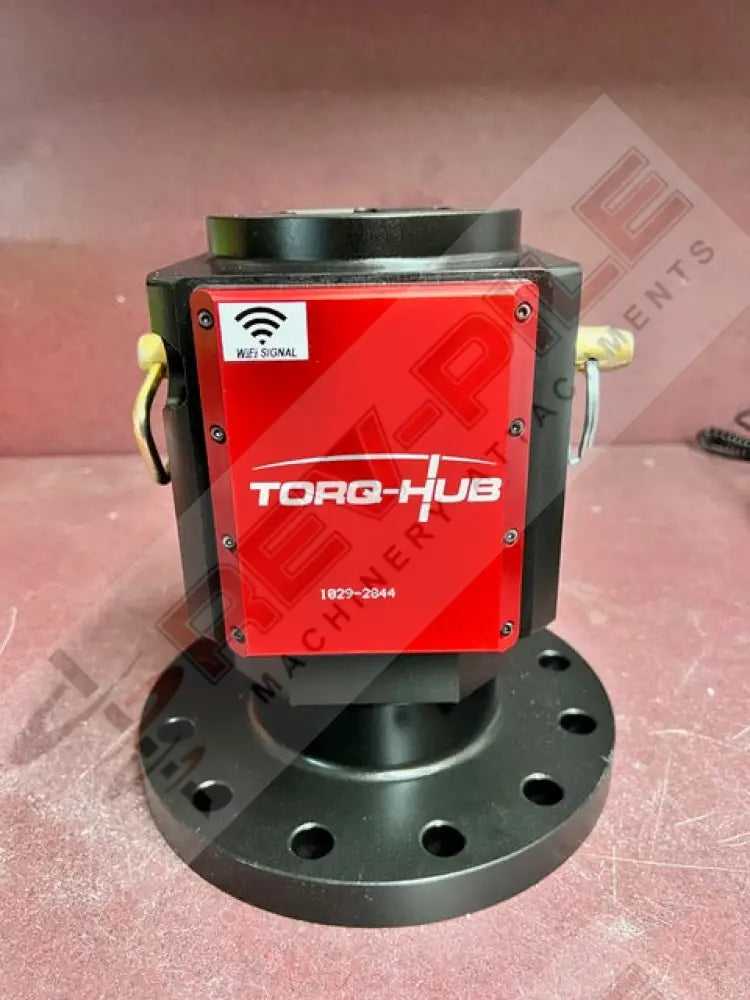

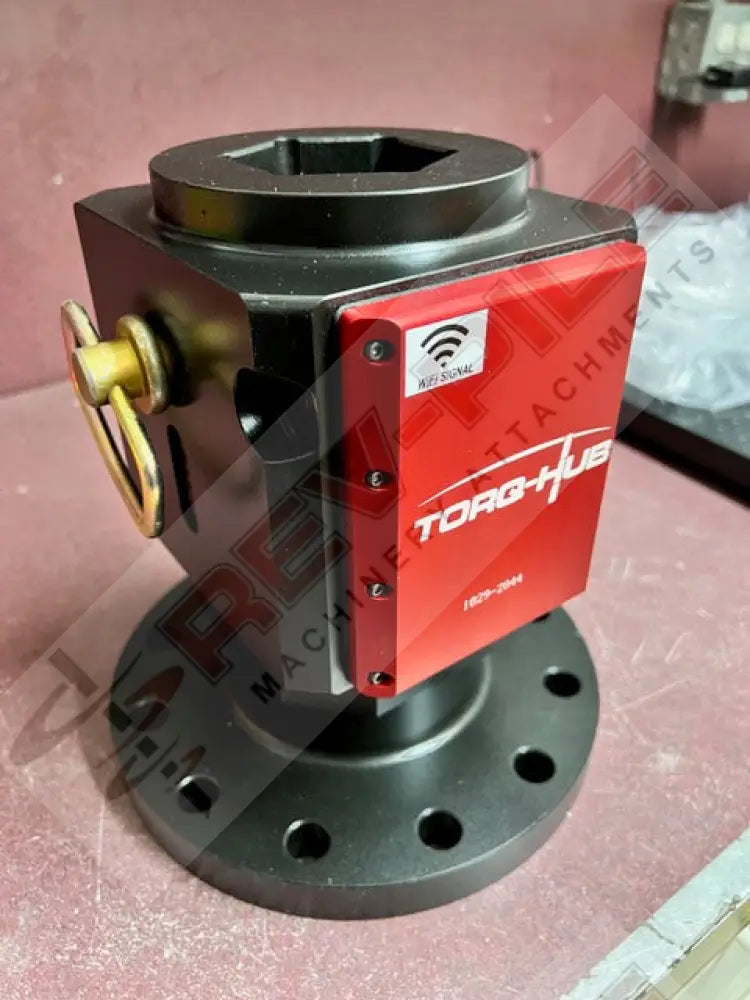

WiFi option: view data on a compatible smartphone/tablet app
RF option: sends data to an in-cab display/data logger

Choose the communication method that best matches your installation and documentation workflow.

Not sure which Torq-Hub configuration fits your drive? Have Rev-Pile verify the setup.

See the Complete Screw Pile Installation System Guide

TORQ-HUB FEATURES

Options for all sizes and shapes of output shafts are available

Inclinometer included displaying pile insertion angle

Wireless RF signal from Torq-Hub to handheld or machine mounted display/data logger or through WiFi directly to your smartphone or tablet with our free app (iOS or Android).

Flange Bolts = 12ea 5/8" @ 7-5/8" PCD

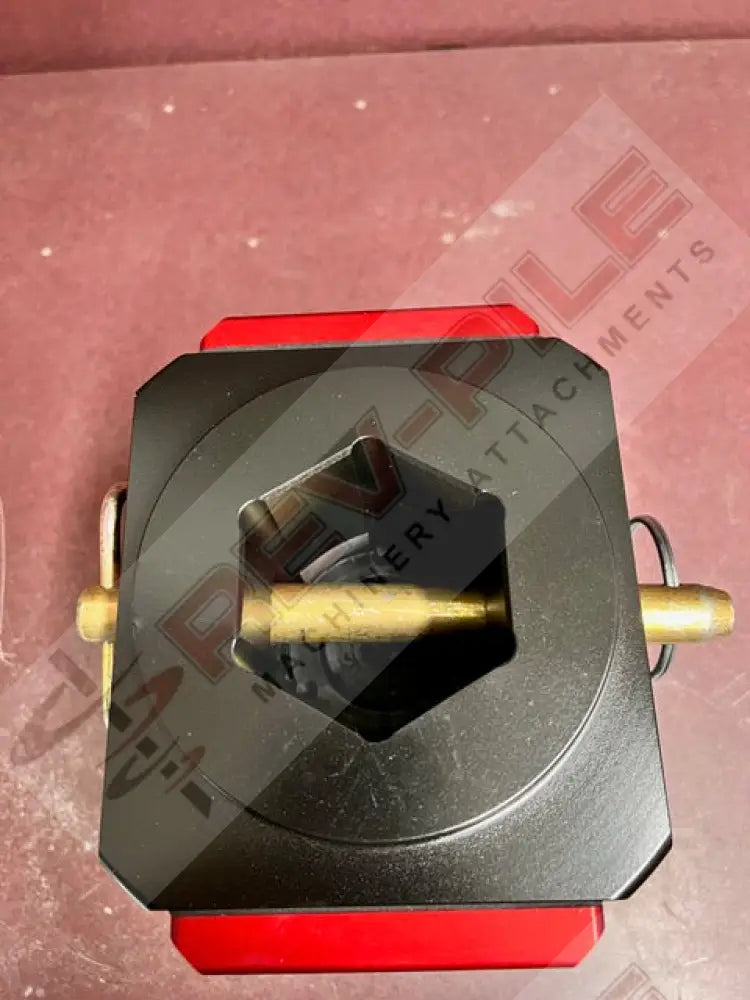

Size = 2-1/2" Hex
Torque Rating (Max) = 20,000 ft-lb (27,116 Nm)
Weights = 68 lbs - 31 kg

Pile Adaptors and Drive Cans

Rev-Pile Torq-Hub Brochure

Rev-Pile Torque Hub Video

Features

TORQ-HUB FEATURES

Options for all sizes and shapes of output shafts are available

Inclinometer included displaying pile insertion angle

Wireless RF signal from Torq-Hub to handheld or machine mounted display/data logger or through WiFi directly to your smartphone or tablet with our free app (iOS or Android).

Product Specifications
