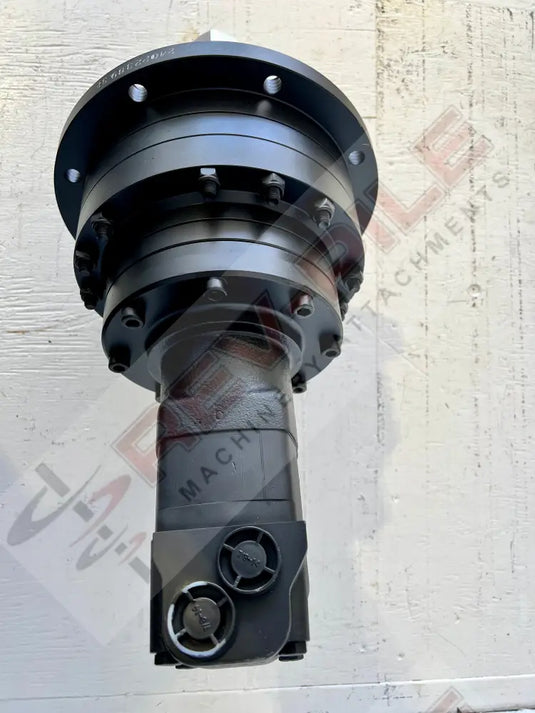

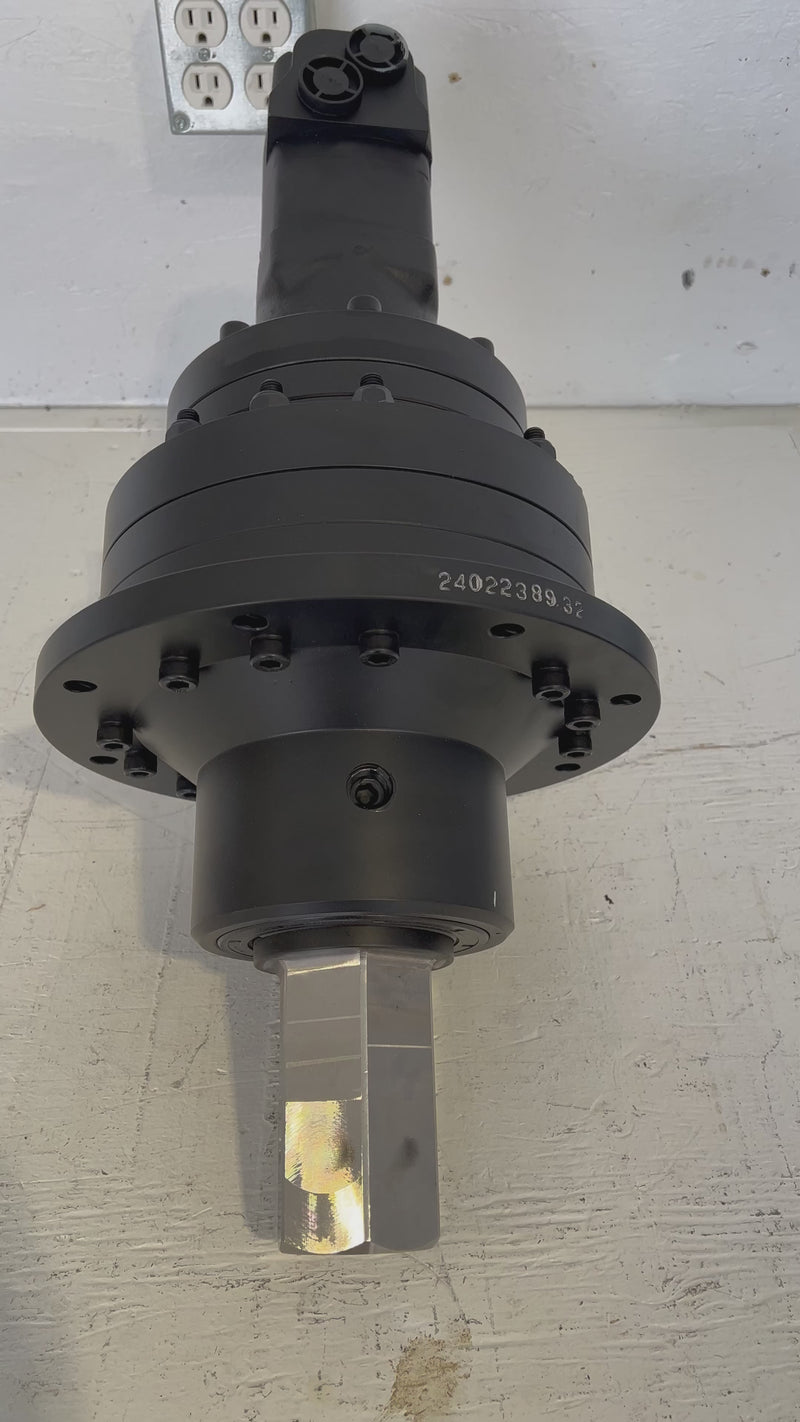

Digga MM-10K Handheld Drive

• Compact high torque Digga manufactured gearbox
• Lightweight and compact for ease of movement in confned spaces

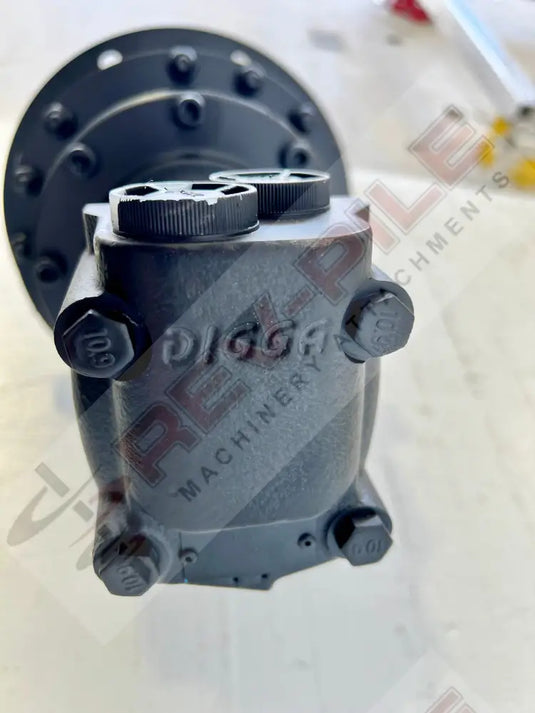

• Fitted with a high efficiency Eaton/Digga geroler hydraulic motor
• Motor mounted pressure relief valve ftted standard (HH-6K)
• Over 34 years design and manufacturing experience
• 1yr gearbox and 1yr motor warranty

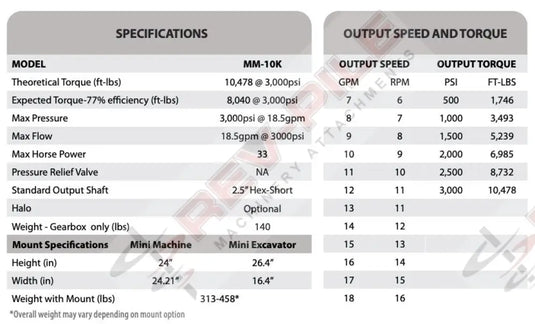

MODEL HH-6K MM-10K
Theoretical Torque (ft-lbs) 6,528 @ 2,100psi 10,478 @ 3,000psi
Expected Torque (ft-lbs) 4,765 @ 2,100psi
(73% efciency)
8,040 @ 3,000psi
(77% efciency)
Max Pressure 2,100psi @ 11gpm 3,000psi @ 18.5gpm
Max Flow 15gpm @ 2300psi 18.5gpm @ 3000psi
Max Horse Power 20 33
Pressure Relief Valve Included NA
Standard Output Shaft 2” Hex 2.5” Hex-Short
Weight (lbs) 90 138
Overall Length (in) 20” 24.1”
Diameter (in) 9.5” 11.4”

• Torque Monitor Systems
• Machine Mounts
• Pressure Differential Gauges
• Adaptors

Screw Anchor Drives Hand-Held (MM-10K Handheld)

Coming Soon
